The clear water analysis consists of plots of water-leaving radiance means for clear water, as defined by depths greater than 1 km and chlorophyll concentrations less than 0.15 mg/m3.
Operational Reprocessing #4
The deep water analysis is analogous to th clear water analysis without the constraint on chlorophyll.
Operational Reprocessing #4

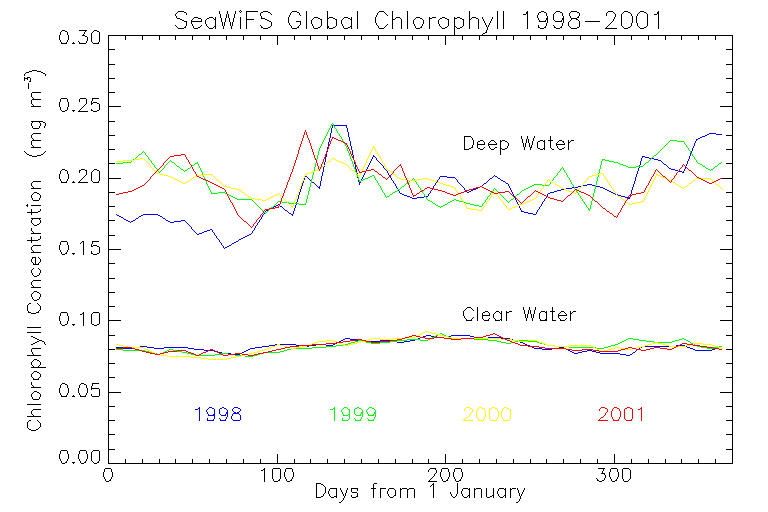

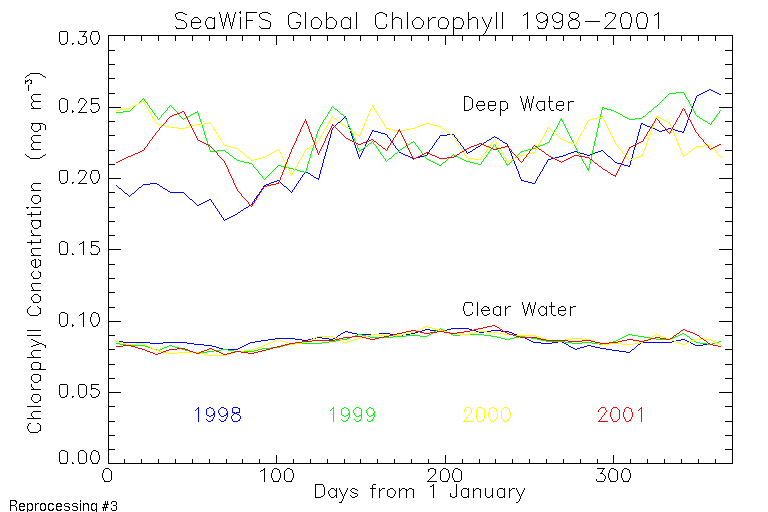

Mean chlorophyll concentrations for the clear- and deep-water analyses.
Operational Reprocessing #4

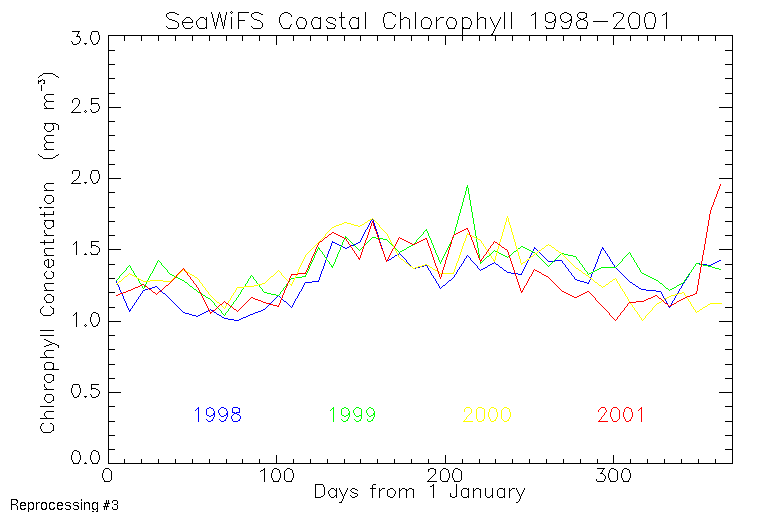

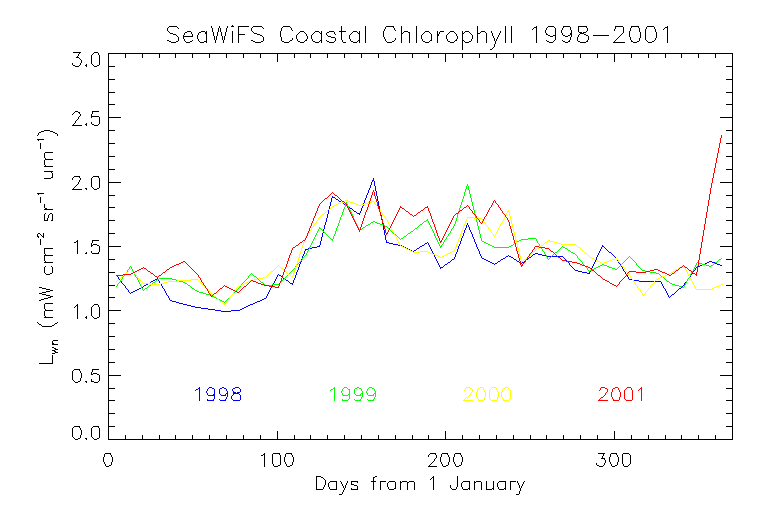

Mean chlorophyll concentrations for the coastal waters (less than 1 km in depth)
Operational Reprocessing #4
| Product | Clear Water | Deep Water | Coastal Water | |||
|---|---|---|---|---|---|---|
| Operational | Reprocessing #4 | Operational | Reprocessing #4 | Operational | Reprocessing #4 | |
| nLw 412 | 1.95 | 2.15 | 1.46 | 1.72 | 0.53 | 0.72 |
| nLw 443 | 1.76 | 1.83 | 1.40 | 1.51 | 0.73 | 0.82 |
| nLw 490 | 1.18 | 1.24 | 1.05 | 1.13 | 0.83 | 0.89 |
| nLw 510 | 0.690 | 0.689 | 0.690 | 0.691 | 0.73 | 0.72 |
| nLw 555 | 0.294 | 0.301 | 0.333 | 0.337 | 0.53 | 0.53 |
| nLw 670 | 0.035 | 0.041 | 0.042 | 0.048 | 0.075 | 0.081 |
| Chlorophyll a | 0.086 | 0.082 | 0.220 | 0.195 | 1.333 | 1.400 |
In addition to the global analyses presented above, regional analyses were performed. The Pacific ocean was divided into 8 subregions, and a time series of the radiances and chlorophyll concentration in each region were plotted. The figure below illustrates each region.
North Pacific 1 Chlorophyll Radiances
North Pacific 2 Chlorophyll Radiances
North Pacific 3 Chlorophyll Radiances
North Pacific 4 Chlorophyll Radiances
South Pacific 1 Chlorophyll Radiances
South Pacific 2 Chlorophyll Radiances
South Pacific 3 Chlorophyll Radiances
South Pacific 4 Chlorophyll Radiances
