Ocean Color Algorithm Evaluation: OC2/OC4/CZCS-GP

Version 4  of Chlorophyll algorithms OC4 and OC2

*************************************************
Coefficients for OC4 version 4  (Maximum Band Ratio, 4th Order Polynomial)
a = [0.366,-3.067,1.930,0.649,-1.532]
R = ALOG10((Rrs443>Rrs490>Rrs510)/Rrs555)
Chl a (ug/l) = 10.0^(a(0) + a(1)*R +  a(2)*R^2   + a(3)*R^3  + a(4)*R^4)

**************************************************
Coefficients for OC2 version 4  (Modified Cubic Polynomial)
a = [0.319, -2.336, 0.879, -0.135, -0.071]
R = ALOG10(Rrs490/Rrs555)
Chl a (ug/l) = 10.0^(a(0) + a(1)*R +  a(2)*R^2   + a(3)*R^3)  +a(4)

***************************************************

Summary Plots	Description

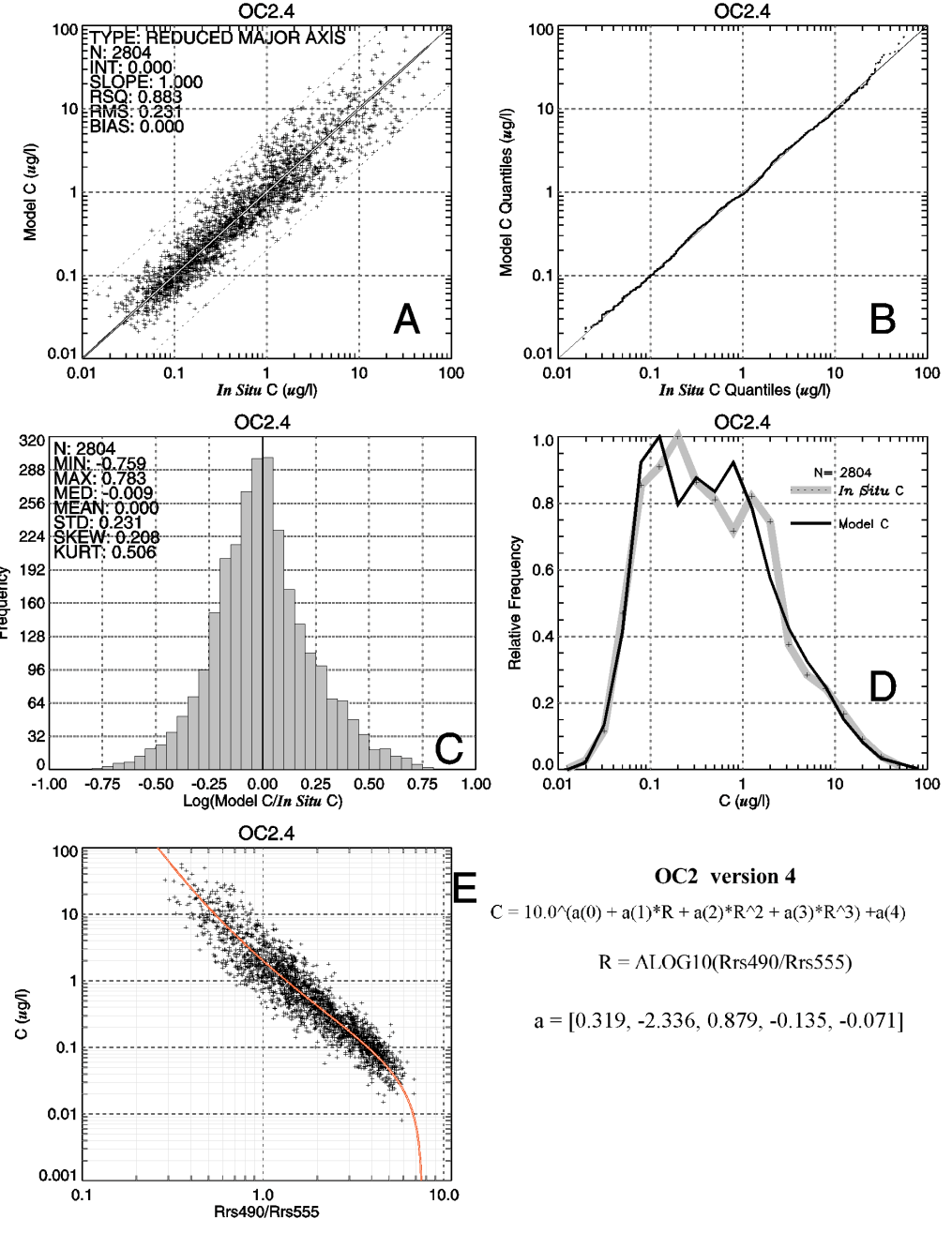

	OC2 algorithm statistics plot

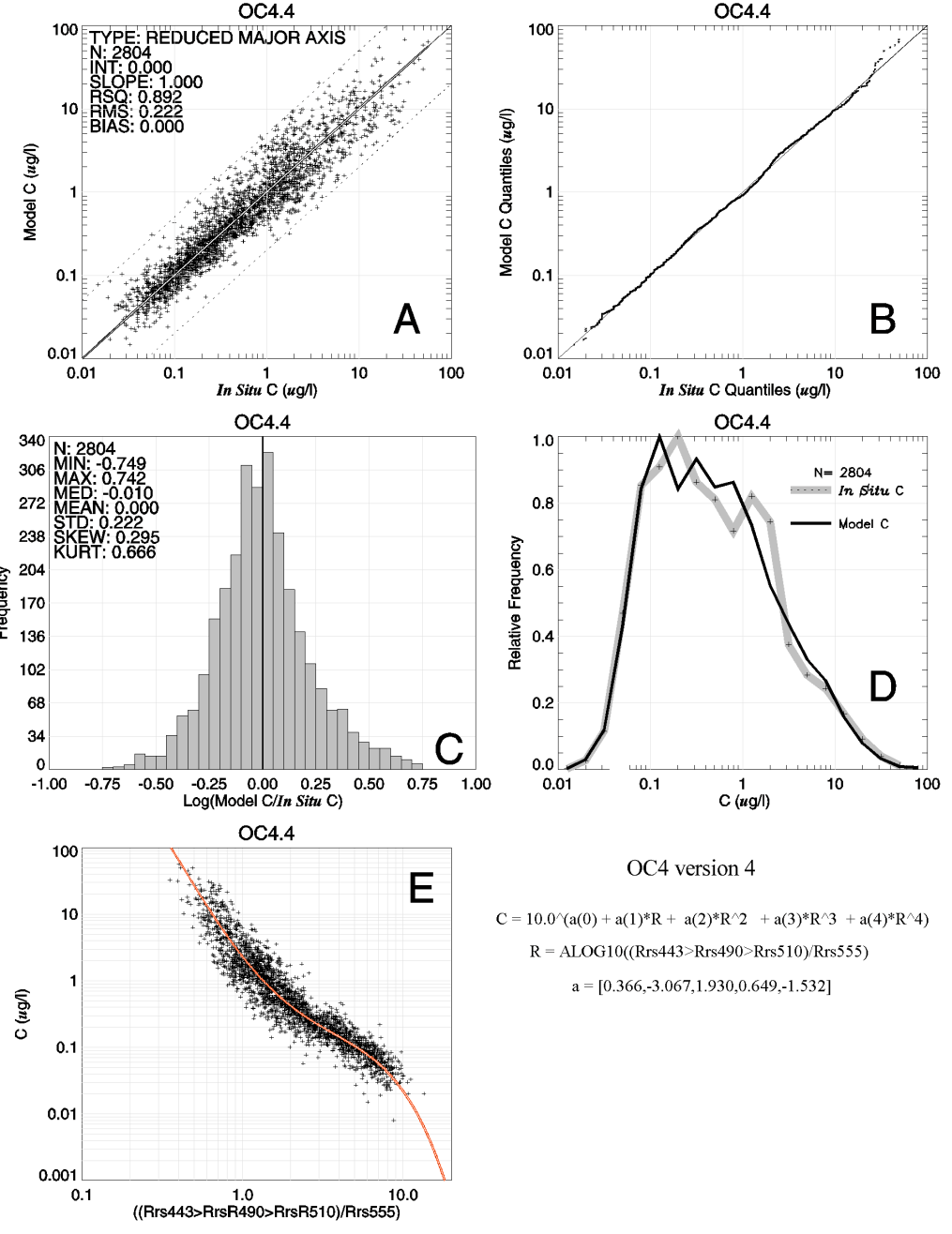

	OC4 algorithm statistics plot
	Comparison of OC2 and OC4 algorithms

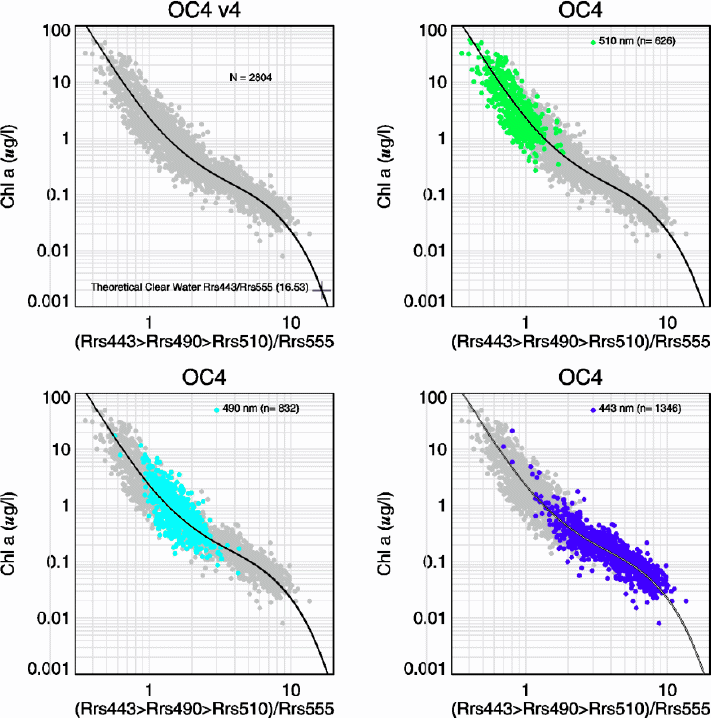

	OC4 Demonstration plots:</ <Chlorophyll a vs. Band Ratios
	OC4 Demonstration plot: Maximum Band vs. Band Ratio Frequency Plot

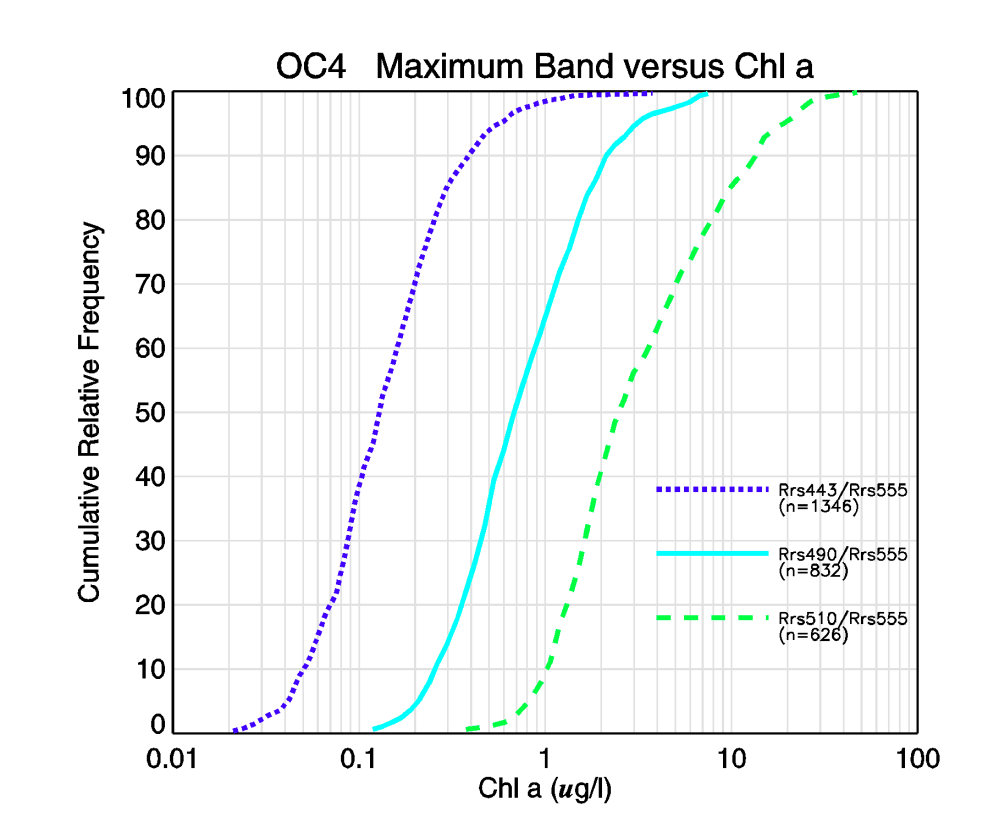

	OC4 Demonstration plot: Maximum Band vs. Chl a Frequency Plot
	Comparison of OC4 and CZCS-GP's
