MODIS-Aqua Ocean Color Reprocessing 2014.0


The Ocean Biology Processing Group (OBPG) completed a full-mission ocean color reprocessing of the MODIS-Aqua (MODISA) ocean color dataset in June 2015. This reprocessing is part of a multi-mission effort to update common algorithms, product suites, and data formats across all supported missions. Sensor-independent changes are detailed in the R2014.0 Ocean Color Reprocessing General Description. Here we describe the MODISA sensor-specific details of the reprocessing, and provide an assessment of data quality and impact relative to the previous MODISA reprocessing version R2013.1 .

Sensor-specific Processing Details

Source Data

As in previous reprocessings, R2014.0 starts from the MODISA Level-1A files. The Level-1A source files are unchanged for this reprocessing.

Instrument Calibration

Calibration Approach

The calibration approach for R2014.0 is unchanged from R2013.1: for all bands, the gains are derived from solar diffuser measurements for each detector and mirror side. For most bands, lunar calibration measurements are used to derive a temporally varying scan angle adjustment (or 'response-versus-scan', RVS). For bands 13-16 (which saturate many pixels when viewing the moon), only the unsaturated pixels are used (using a ratio technique developed by MCST). For bands 8 and 9 (412nm and 443nm), the temporal trend for several scan angles (even for the solar diffuser scan angle) is derived using the trending from desert sites. The values derived with the above methods are provided to the OBPG by MCST in the form of special LUTs ending with the suffix 'OC2'. The version used for R2014.0 is V6.1.33.8_OC2.

Using these special LUTs as a starting point, the OBPG derives additional corrections. First, a detector correction is derived for the NIR bands (748nm and 869nm), using a method described in (Meister et al. 2009) that flat-fields the top-of-atmosphere (TOA) radiances for the detectors relative to each other after taking into account the expected variations due to atmospheric scattering. (The NIR bands cannot be modified with the current crosscalibration approach described below, therefore they require a special analysis.)

Corrections for the remaining bands are then derived using the crosscalibration (xcal) approach described in (Meister & Franz 2014). For one day of every month, a 7 day L3 file is produced centered on the day of interest. The actual day of interest is excluded from the L3 file (note that this is a new feature in R2014.0 to avoid biasing the corrections towards a value of 1.0). The L3 file is calculated without using any data from within 300 pixels of the scan edges. The xcal coefficients M11 correct for detector and mirror side striping, as well as for scan angle dependencies. There is also a potential impact on the temporal trending, but this effect is typically small because erroneous temporal trends are usually contained in the L3 input files. However, erroneous temporal trends that mainly impact the scan edges can be corrected (because the scan edges are excluded from the L3 files) with this approach.

Crosscalibration Results

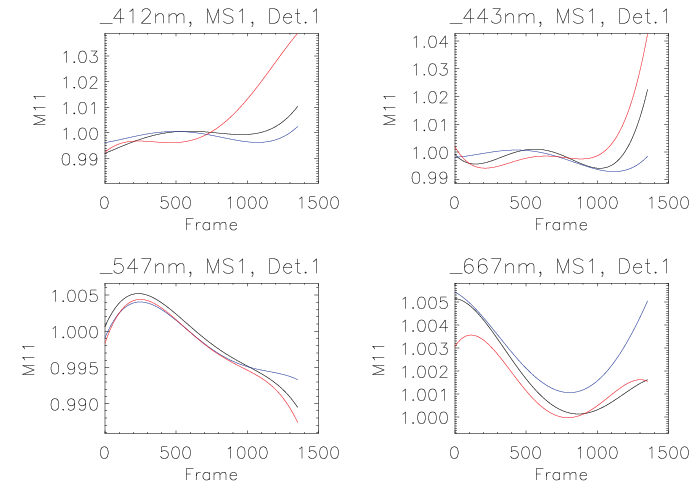

The xcal coefficients M11 (version axc38d) are shown as a function of time for several scan angles here, where solid and dashed lines correspond to mirror sides 1 and 2, and the detectors are color coded. The xcal coefficients are shown as a function of scan angle in the plots below (black = mission average, blue = start of mission, red = end of mission) for 4 wavelengths (mirror side 1, detector 1):

These plots show that for the blue bands, large corrections are needed for the end of scan at the end of the mission. For example, the M11 lower the 443nm radiances at the end of scan ('frame' or 'pixel' 1350 in the plots above) by about 4% in 2015. The corrections applied for the longer wavelengths are comparatively much smaller, especially regarding their temporal variation.

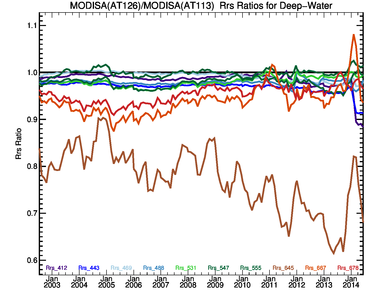

A comparison of global temporal anomalies of ocean products for R2014.0 (plots labeled AT126) and for R2013.1 (plots labeled AT113) shows:

  • Rrs at 547nm shows an erroneous decrease in 2014 for R2013.1 that has been removed in R2014.0
  • downward trends of the Rrs at 667nm and 678nm in R2013.1 have been eliminated in R2014.0
  • Rrs at 412nm shows a clear downward trend (about 5%) over the mission. The 412nm band is the most difficult to calibrate due to its degradation pattern, so it is likely that this trend is a calibration artifact.

Although some striping can be seen at the end of the mission, it is clearly reduced in R2014.0 relative to R2013.1, as shown in these sample images.


The OBPG applies an additional vicarious calibration to VIIRS during Level-2 processing (Franz et al. 2007). The 869nm band is assumed to be correctly calibrated from prelaunch measurements. The 748nm band is adjusted using match-ups from the South Pacific Gyre to force the aerosol type retrievals to agree, on average, with the aerosol type observed at the Tahiti AERONET site. The calibration of the visible bands (412nm to 678nm) is then adjusted to produce retrievals that match, on average, measurements from the Marine Optical Buoy (MOBy) near Lanai Hawaii. The vicarious calibration gains derived in this manner are:

Wavelength (nm) 412 443 469 488 531 547 555 645 667 678 748 859 869 1240 1640 2130
Gain 0.9722 0.9872 1.0139 0.9923 0.9995 0.9989 1.0014 1.0253 0.9996 1.0000 0.9997 1.0184 1.0 1.0 1.0 1.0

Level-2 Processing

The algorithms employed and products produced from MODIS are as described in the R2014.0 Ocean Color Reprocessing General Description. Sensor-specific center wavelength values used in processing and product naming are as shown in the table above.

Impact and Quality Assessment

Impact of Reprocessing on Timeseries

To assess the impact of this R2014.0 reprocessing relative to the previous R2013.1 reprocessing, a comparative timeseries analysis was performed (see (Franz 2009) for details on the evaluation approach). The impact of all calibration, algorithm, and ancillary data changes on remote sensing reflectance is shown in this comparison of 4-day mean ocean color products sampled on monthly time-scale for various globally-distributed geographic subsets. The most significant impact of the calibration changes described above are in the blue bands (412nm and 443nm) in 2014, where water-leaving radiances of R2014.0 have increased by about 10% relative to R2013.1, and in the red bands, where a significant mission trend was removed from the 667 and 678-nm time-series. The plot below shows the global deep water (> 1000m) Rrs averages as a function of time (dashed line is R2014.0, solid line is R2013.1):

R2013.1 & R2014.0

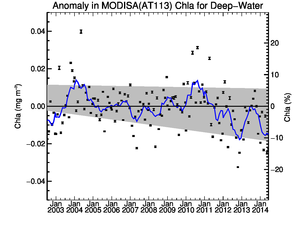

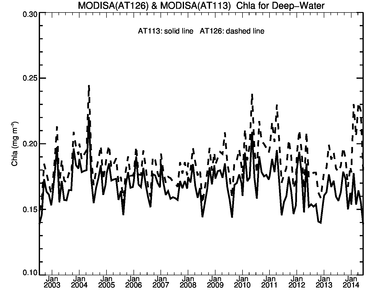

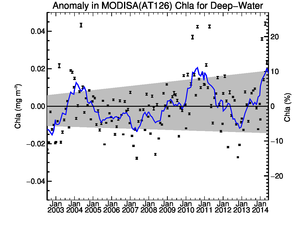

Impact on the chlorophyll time-series from this reprocessing is to introduce a shift of ~0.015 mg/m^3, primarily due to the new OCI chlorophyll algorithm. The calibration changes also modify the trends in chlorophyll, as illustrated below by the deep-water temporal anomaly (relative to annual cycle) before and after the 2014.0 reprocessing.

R2013.1 (left) and R2014.0 (right)

Comparison with In Situ Measurements

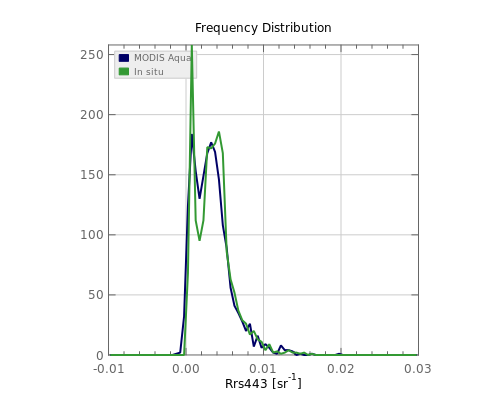

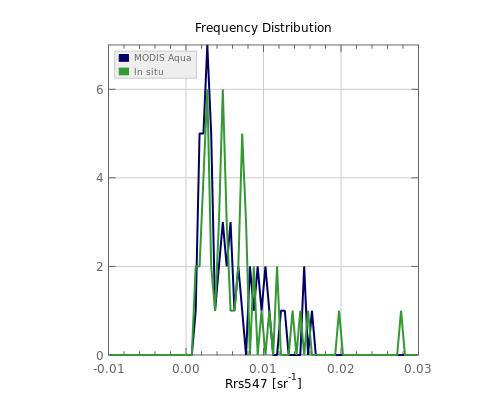

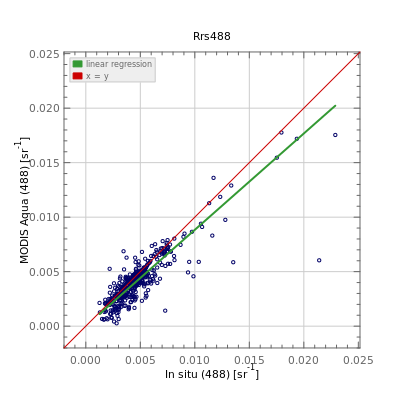

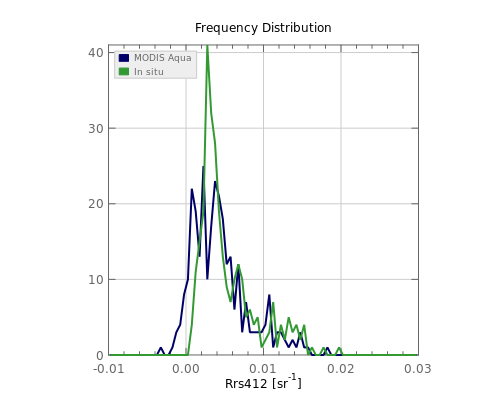

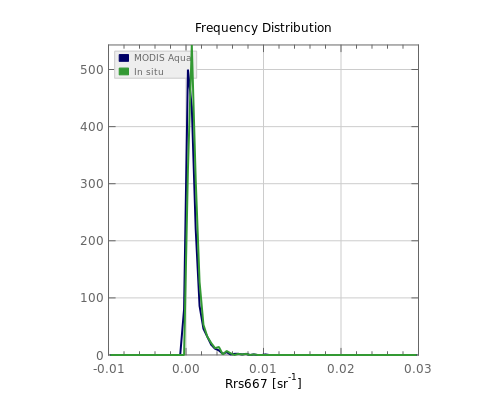

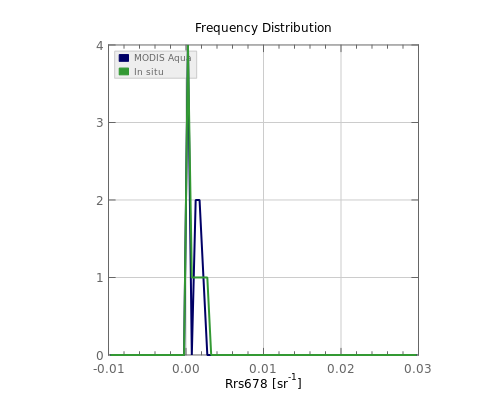

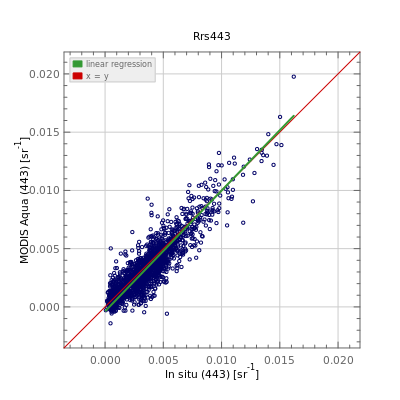

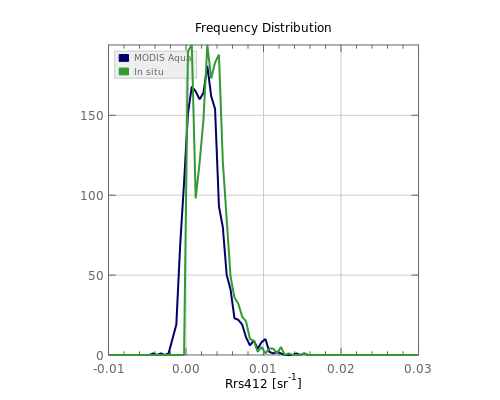

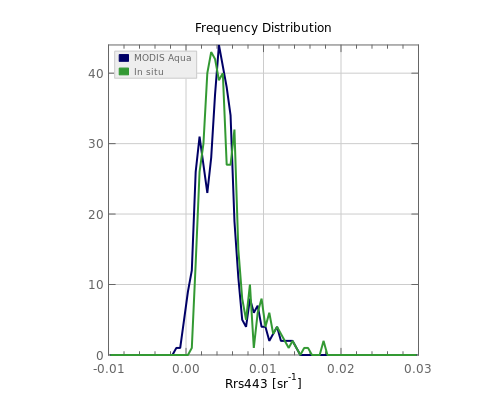

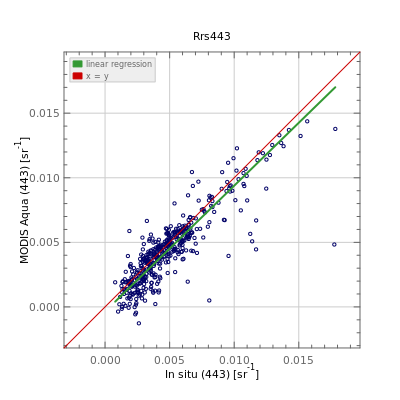

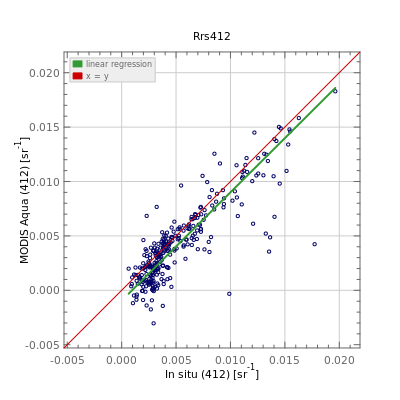

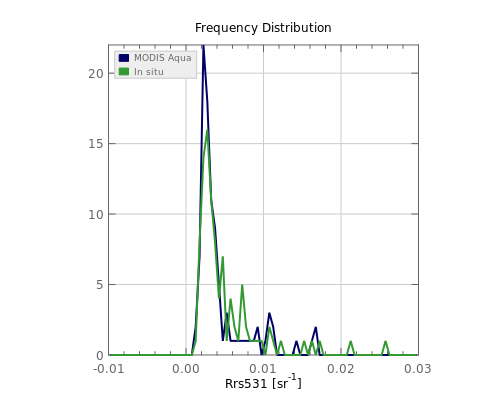

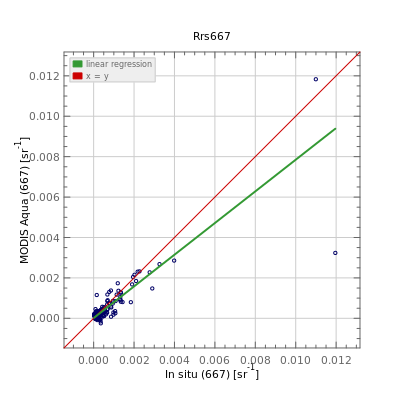

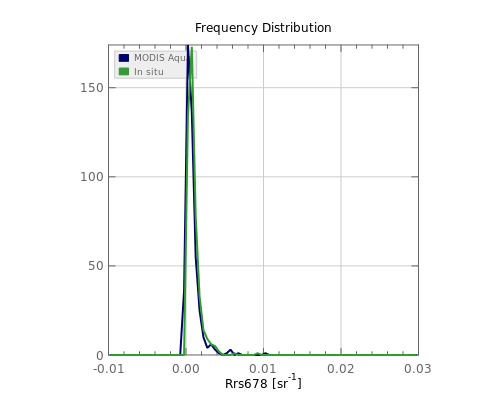

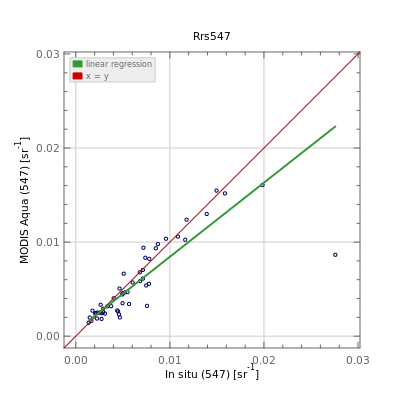

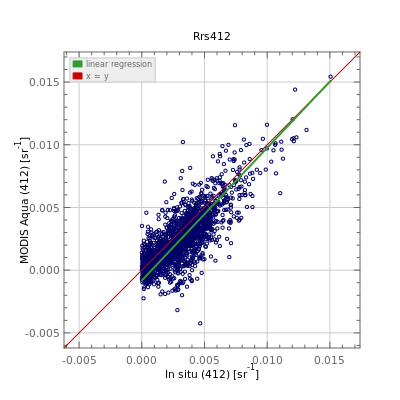

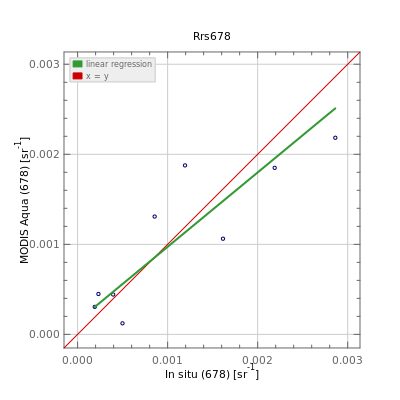

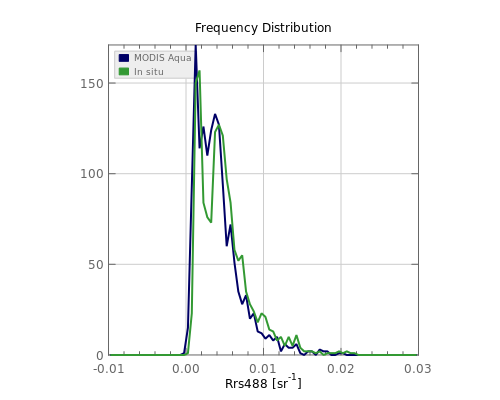

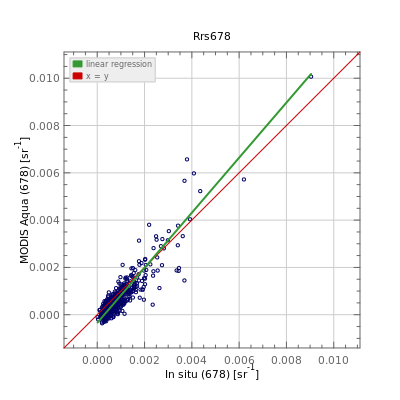

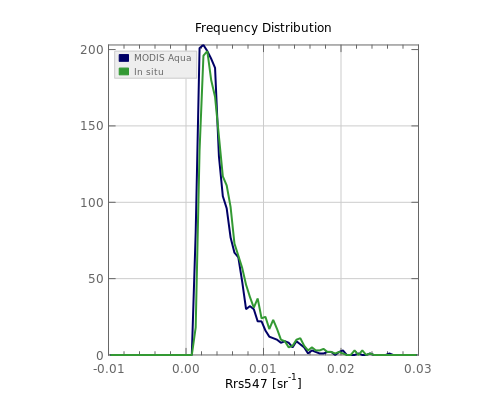

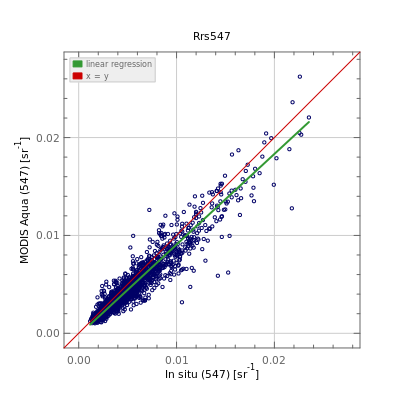

Validation of the remote sensing reflectance retrievals was performed relative to all available match-ups from SeaBASS holdings and additional match-up analysis with level 2 data from the Aerosol Robotic Network - Ocean Color (AERONET-OC). Statistical analysis of the satellite to in situ match-ups as of this writing is provided below. Also shown are scatter plots and frequency distribution comparisons.

Validation results: SeaBASS Rrs holdings

MODIS Aqua RangeIn situ Range#Best Fit
Best Fit
R2Median RatioAbs %
Rrs412-0.00203, 0.018350.00064, 0.019642950.99660-0.000870.770690.8798622.252240.00219
Rrs443-0.00091, 0.014640.00078, 0.017834470.97806-0.000090.783650.9933914.556350.00146
Rrs4880.00014, 0.017770.00126, 0.022894620.885690.000070.779060.9395611.259060.00135
Rrs5310.00084, 0.016920.00128, 0.025871000.827640.000300.803630.9554911.153950.00207
Rrs5470.00104, 0.016040.00137, 0.02759530.789780.000550.739020.9379212.223080.00290
Rrs667-0.00038, 0.011820.00002, 0.011963410.779950.000020.769060.9677533.936950.00053
Rrs6780.00017, 0.002200.00019, 0.0028690.817380.000170.794911.2415953.660990.00044

Validation results: AERONET-OC Level 2 Match-ups

MODIS Aqua RangeIn situ Range#Best Fit
Best Fit
R2Median RatioAbs %
Rrs412-0.00424, 0.015430.00001, 0.0150518981.05821-0.000820.715580.7793935.526050.00152
Rrs443-0.00141, 0.019770.00007, 0.0162019071.03652-0.000380.843630.9190820.250850.00108
Rrs488-0.00021, 0.020130.00039, 0.0216115290.89623-0.000270.918190.8309518.748020.00126
Rrs5310.00103, 0.020690.00129, 0.022856830.91473-0.000310.909070.8552516.857950.00134
Rrs5470.00102, 0.026230.00117, 0.0235319070.92599-0.000200.908680.8847313.679740.00120
Rrs667-0.00033, 0.010050.00001, 0.0087214531.05722-0.000260.831790.7665728.839650.00048
Rrs678-0.00036, 0.010070.00001, 0.009044561.16416-0.000350.840170.7568131.949630.00046

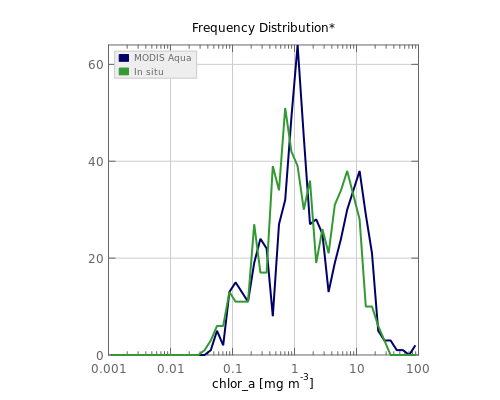

Validation of the chlorophyll retrievals was performed relative to all available match-ups in SeaBASS.

MODIS Aqua RangeIn situ Range#Best Fit
Best Fit
R2*Median RatioAbs %

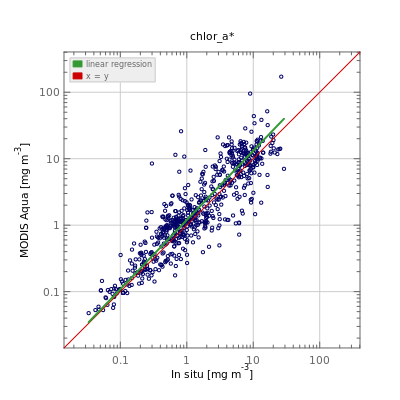

chlor_a0.02936, 180.870000.03340, 29.004006571.067020.055610.816161.1549340.846880.32391

Update R2014.0.1

In early September of 2016, a partial reprocessing of the MODIS-Aqua ocean color record was performed. This was a minor calibration update to reduce detector striping artifacts in the most recent period of the record. The destriping correction follows the method of (Meister & Franz 2014), and is simply an update of the original corrections implemented for R2014.0. The effect of detector striping on the derived products is quantified by computing the ratio of Level-2 retrievals to co-located and temporally centered 7-day Level-3 composites. The ratios over global deep water are then stratified by detector and mirror side, and common sets are averaged. The striping analysis for R2014.0 and the striping analysis for R2014.0.1 demonstrate the issue and verify the improvement.

The reprocessing covered the period from day 160 of 2014 to day 243 of 2016 (roughly the most recent two years). Changes to the global trends are within a few percent for Rrs and chlorophyll, as shown in the deep-water trend comparisons below.

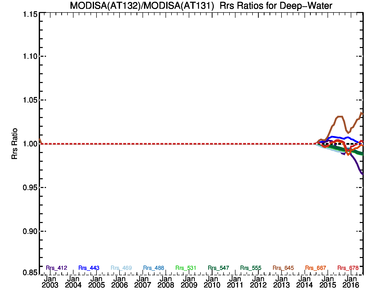

R2014.0 & R2014.0.1
