VIIRS M-band Pixel Aggregation and Bowtie Deletion

sample VIIRS scene
48th scan image of 48th scan
47th scan image of 47th scan
46th scan image of 46th scan
45th scan image of 45th scan
44th scan image of 44th scan
43rd scan image of 43rd scan
42nd scan image of 42nd scan
41st scan image of 41st scan
40th scan image of 40th scan
39th scan image of 39th scan
38th scan image of 38th scan
37th scan image of 37th scan
36th scan image of 36th scan
35th scan image of 35th scan
34th scan image of 34th scan
33rd scan image of 33rd scan
32nd scan image of 32nd scan
31st scan image of 31st scan
30th scan image of 30th scan
29th scan image of 29th scan
28th scan image of 28th scan
27th scan image of 27th scan
26th scan image of 26th scan
25th scan image of 25th scan
24th scan image of 24th scan
23rd scan image of 23rd scan
22nd scan image of 22nd scan
21st scan image of 21st scan
20th scan image of 20th scan
19th scan image of 19th scan
18th scan image of 18th scan
17th scan image of 17th scan
16th scan image of 16th scan
15th scan image of 15th scan
14th scan image of 14th scan
13th scan image of 13th scan
12th scan image of 12th scan
11th scan image of 11th scan
10th scan image of 10th scan
9th scan image of 9th scan
8th scan image of 8th scan
7th scan image of 7th scan
6th scan image of 6th scan
5th scan image of 5th scan
4th scan image of 4th scan
3rd scan image of 3rd scan
2nd scan image of 2nd scan
1st scan image of 1st scan

Move your pointer across the above VIIRS scene to see how it is divided into individual scan lines. If you hover over any of the little red squares, you should see a zoomed-in version in this space. (JavaScript must be enabled.) The seven insets have been placed over: the scene edges (A and G), the nadir region (D), and the trasition regions (B, C, E, and F) between the different pixel aggregation zones labeled above.

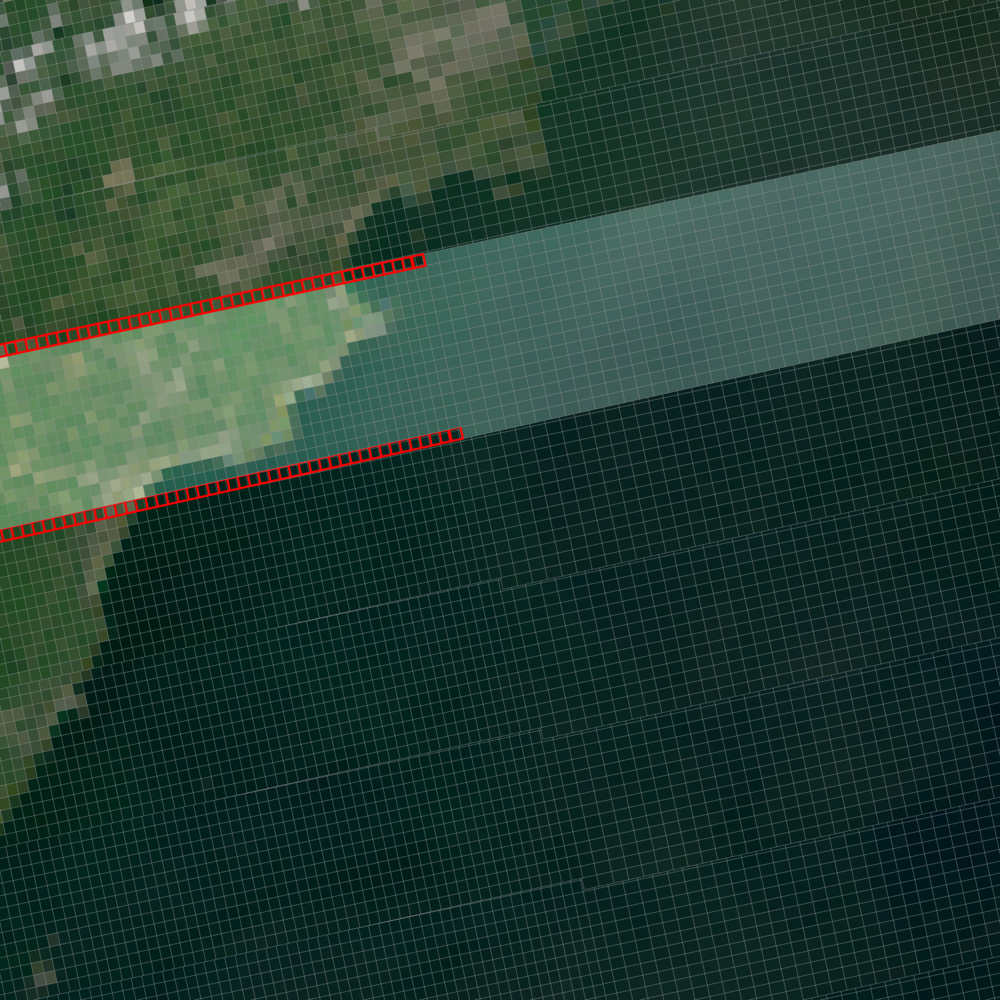

Pixels omitted from each scan (bow-tie deletion) are outlined in red in the zoomed-in extracts. The pixels on either side of the nominal nadir position (Inset D) are outlined in yellow. The irregular shapes of the pixels in Inset F result from the intersection of non-nadir fields of view (the scan angle is approximately 45 degrees in this region) with the mountainous topography of the Appalachians.

Note that pixels get wider as one moves away from nadir except when transitioning to a different aggregation zone at which point the pixels abruptly get narrower again — as one would expect when going first from three samples per detector to two (Insets C and E) and then from two to one (Insets B and F).

There is very little overlap from one scan line to the next near the nadir portion of the scan. As one moves away from the nadir position, adjacent scan lines begin to overlap more and more even after the bow-tie deletion pixels are removed.

(If the scan line does not move with your pointer on the above image, make sure you are allowing JavaScript for this site and then try reloading this page in your browser.)

Inset G Inset F Inset E Inset D Inset C Inset B Inset A
